Feature:

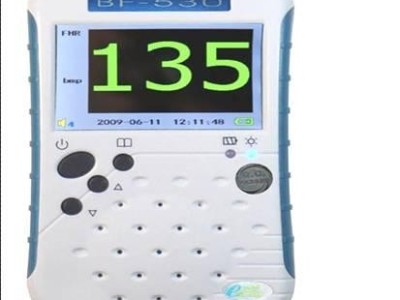

Pocket Fetal Doppler mainly applies to detect the fetal heartbeat rate from the twelfth week;

2.4'' ultra big LCD displays the FHR dataa, graphic ( dual interfaces ), real-time, date and battery capacity, volume of sound and alarm indicator etc..

Built-in rechargeable battery can work continuously more than 4 hours

TFT  LCD display for use conveniently at night;

Automatic power off (one minute), self-detect function and alarm function when FHR is out of the normal range or battery power is in shortage;

only 270g, can be carried with conveniently with an earphone, gllus and portable handbag;

Built-in speaker, collocate with earphone jack;

Normative collection: USB interface for normative collocation, analysis software for option.

2.0MHz probe

Software for option, Can connect with PC by USB.

Specifications:
Executive standard: EN61266: 1995

Ultrasonic frequency: 2.0MHz±10%

Working mode: Continue Ultrasonic Doppler

Ultrasonic intensity: ≤10mW/cm2

Comprehensive Sensitivity: ≥90dB

FHR range: 60--210bpm(±2bpm)

Isptp: ≤0.1MPa

Battery: 9.6VNi-MH rechargeable batteries

Adapter input voltage: AC 100--240V 50Hz/60Hz

Rechargeable battery input voltage（no load）: DC 5V/1A

Maximum audio output intensity: ≤0.5W

Doppler frequency: 100--3000Hz

Static continuous working time: ≥4h

Automatic Dormancy time limit:1 minute

Working temperature: 10-40℃

Humidity: ≤80%

Atmospheric pressure: 86--106kPa

Packaging collocation:
Single Unit     Dimension: 26cm x 24cm x 12cm        Gross Weight: 1.5kg

6 pcs/carton   Dimension: 49cm x 26cm x 33cm        Gross Weight: 8.5kg

Normative collocation: charger, gel, small bag, gallus, operation manual, approval certification, warranty card
